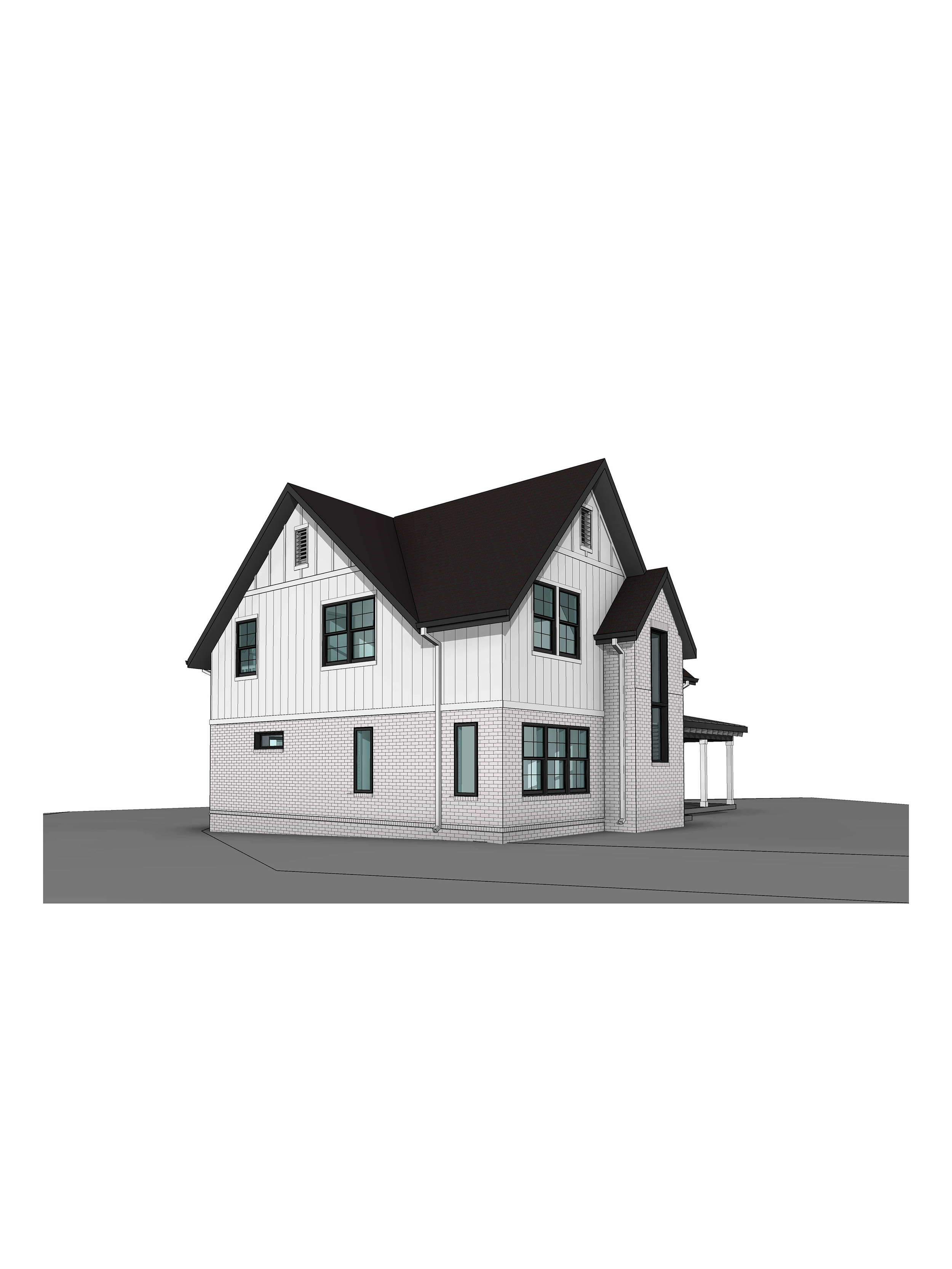

This detailed floor plan listing emphasizes the traditional design elements with a Modern Twist, functionality, and comfort of a Single Family Home. This plan provides a desirable living space for a family of 4-5 people. The exterior walls boast a striking combination of painted white Brick and white Hardie vertical plank siding for the ultimate blend of Modern and Traditional design.
First Floor:
Welcoming Entryway with a modern pendant light fixture and coat closet.
Open Concept Floor Plan tying the Living room and spacious Kitchen together.
Convenient Laundry Closet/Mudroom Room equipped with a washer and dryer. The side entry mudroom helps organize and maintain your home with ease.
Stylish Kitchen complete with sleek countertops, stainless steel appliances, a central island with a breakfast bar, and plenty of cabinet storage.
Second Floor:
The stair is placed centrally in the house and equipped with large windows inviting natural light throughout the house .
Bonus/Play Room allows everyone to spend quality time together/
Jack and Jill Bathroom connects two spacious bedrooms for optimal efficiency and plan organization
Secondary Suite is perfect for out of town guests with a private entrance to the full bathroom.
Large closet and Storage space for anything you want to hide away but still within easy access.
PRICING SET
Includes a PDF with everything your General Contractor will need to put together a detailed estimate for your project.
Drawings included:
Foundation Plans
Floor Plans
Roof Plan
Exterior Elevations
Door and Window Schedule
CONSTRUCTION SET - SINGLE
Includes a PDF of the full construction set with a license to build a single home will be emailed to you. PDF includes a copyright release to make modifications (only minor, non-structural changes are recommended). Buyer may print additional sets as needed.
Additional Drawings included:
Lighting Plans
Typical wall section(s)
Construction details
Building cross-section(s)
Additional structural information
General code information
Stair details
Kitchen & bath cabinet elevations
CONSTRUCTION SET - UNLIMITED
Includes a PDF of the full construction set with a license to build an unlimited number of this plan will be emailed to you. Comes with a license to build unlimited number of homes with no re-use fees. PDF copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.
CAD - UNLIMITED
For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build an unlimited number of homes with no re-use fees. Recommended if making major modifications to your plans.
***NOT INCLUDED WITH ANY OF THESE PLANS***
ARCHITECTURAL OR ENGINEERING STAMP - must be addressed locallty ( Contact us if located in NC)
MECHANICAL DRAWINGS (location of heating and air equipment and duct work) - your subcontractors handle this.
PLUMBING DRAWINGS (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
ENERGY CALCULATIONS
FINISH SCHEDULE - Drawings do not indicate the finishes to be installed in the home. These are to be selected by the owner.
FIXTURE SELECTIONS - Plumbing and lighing selections are to be selected by the owner.
